nao2o22 standard cell family

 2×2-OR into 2-NAND gate
nao2o22 symbol
The nao2o22_x1 is a single stage OR-AND-Invert with P/N ratio of 1.7. The nao2o22_x4 is a 3 stage OR-AND-Invert with stage efforts of about 1.7 and 3.9.
nq:((i2+i3)*(i0+i1))' cell width power Generic 0.13um typical timing (ps & ps/fF), pin i1.
leakage dynamic tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
ssxlib013 gates lambda 0.13um nW nW/MHz PinCap PropR RampR PropF RampF
nao2o22_x1 2.3  70 3.85 1.16  16.4  6.1f  54  2.99  46  1.80
nao2o22_x4 3.7 110 6.05 2.77  56.5  3.8f 178  0.76 163  0.61
nao2o22_x1

Effort
FO4 Log.
i0 /\ 1.70 1.73
¯_
i1 /\ 1.56 1.71
¯_
i2 /\ 1.93 1.79
¯_
i3 /\ 1.77 1.75
¯_

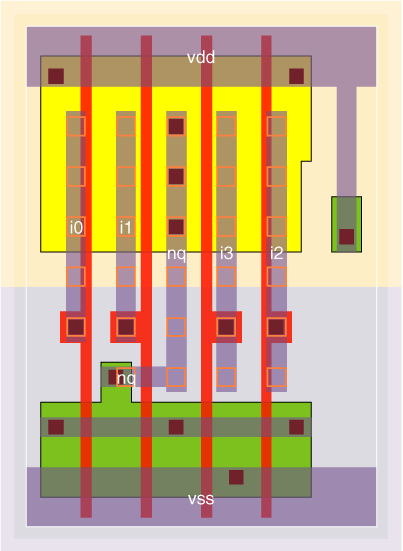

nao2o22_x1 schematic nao2o22_x1 standard cell layout
nao2o22_x4

Effort
FO4 Log.
i0 /\ 2.73 0.28
¯_
i1 /\ 2.59 0.30
¯_
i2 /\ 3.00 0.28
¯_
i3 /\ 2.85 0.29
¯_

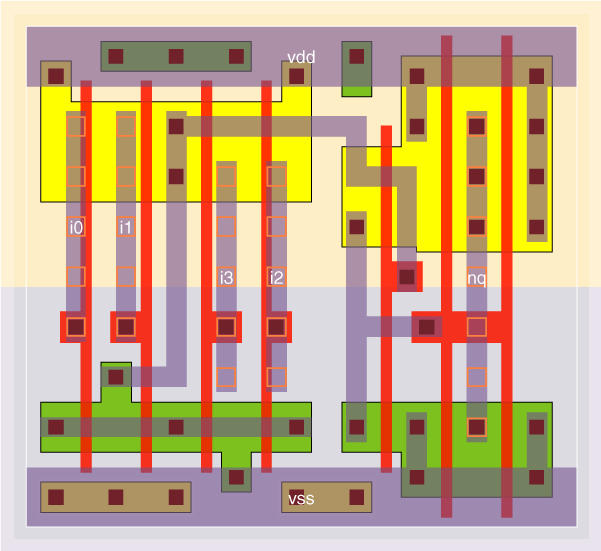

nao2o22_x4 schematic nao2o22_x4 standard cell layout
Web data book for the ssxlib. Vdd=1.2V, T=27°C, nominal process, generic 0.13um technology.   Copyright © 2005-2008 Graham Petley.  11 JAN 2008
