noa22 standard cell family
2-AND into 2-NOR gate
UP
PREV
NEXT

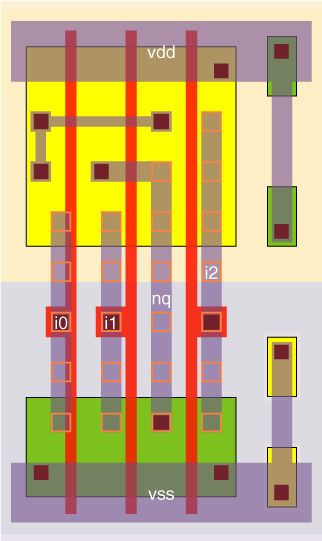

The noa22_x1 is a single stage AND-OR-Invert with P/N ratio of 1.7 for pins
i0
and
i1
, and about 1.1 for pin
i2

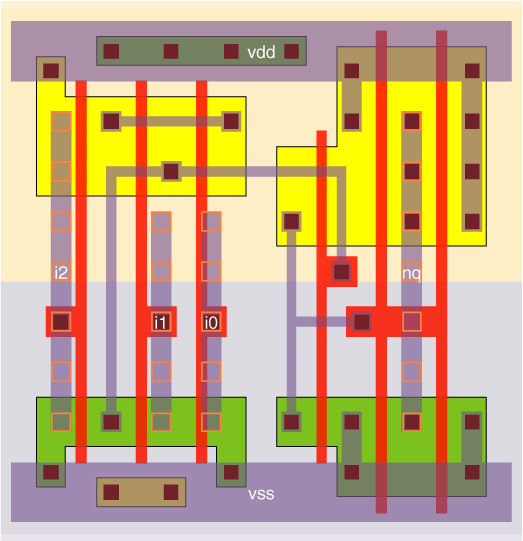

. The noa22_x4 is a 3 stage AND-OR-Invert with stage efforts of about 1.7 and 3.9 for pins
i0
and
i1
, and 1.4 and 3.9 for pin
i2
.
nq:((i0*i1)+i2)'
cell width
power
Generic 0.13um typical timing (ps & ps/fF), pin
i1
.
leakage
dynamic
tR=PropR+RampR×Load(fF), tF=PropF+RampF×Load(fF)
sxlib013
gates
lambda
0.13um
nW
nW/MHz
PinCap
PropR
RampR
PropF
RampF
noa22_x1
2.0
60
3.30
0.92
14.0
6.3f
51
2.92
43
1.86
noa22_x4
3.3
100
5.50
2.19
54.9
3.7f
169
0.74
159
0.57
noa22_x1
Effort
FO4
Log.
i0
/\
1.57
1.71
¯_
i1
/\
1.53
1.74
¯_
i2
/\
1.59
1.50
¯_
noa22_x4
Effort
FO4
Log.
i0
/\
2.56
0.27
¯_
i1
/\
2.49
0.29
¯_
i2
/\
2.59
0.28
¯_
Web data book for the sxlib. V
dd
=1.2V, T=27°C, nominal process, generic 0.13um technology. Copyright © 2005-2008 Graham Petley. 11 JAN 2008
